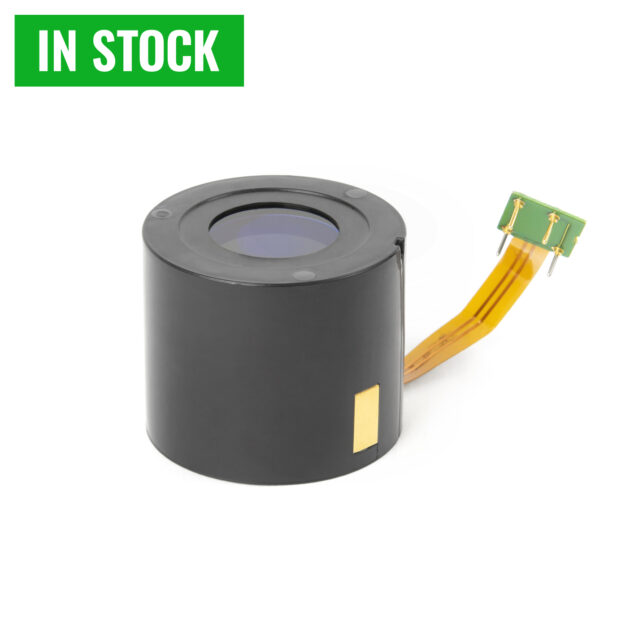

MX10130 Image Intensifier Tube

The MX10130 is a Gen 3 18mm image intensifier manufactured by Elbit Systems of America (previously Harris Night Vision). The MX10130 is the most widely used image intensifier and is found in the AN/PVS-7A, B, C & D series of night vision goggles along with a few weapon sights.

The MX10130 image intensifier consists of a high efficiency GaAs photocathode bonded to a glass input window, a microchannel plate (MCP) current amplifier, and a P-43 phosphor screen deposited on non inverting fiber optic output window. The Gen 3 photocathode is very sensitive to low radiation levels of visible and, especially, near infrared light. Tube lifespan is an average of 12,000 hours continuous use.

The MX10130 is available in several grades (see chart below) based upon performance and blemishes (imperfections in the image). All MX10130 tubes come with a tube data sheet listing the following specifications: Signal to Noise Ratio (S/N), Resolution, EBI (electronic background input), HALO, Photocathode Response (PR). These specifications are the most critical to the actual tube performance, as no two tubes are exactly alike.

We also carry a large assortment of MIL SPEC OMNI 5 and 6 image intensifiers including Pinnacle image tubes for US Govt. sales only. Figure of merit (FOM 1250 & 1600) are also available for Export*. Please call for more information.
