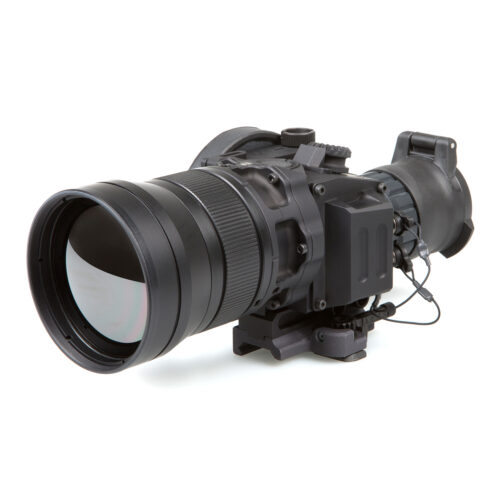

Brolis LW75-MG LWIR Thermal Weapon Sight

Call for price

SKU: LW75-LWIR Categories: , Tag:

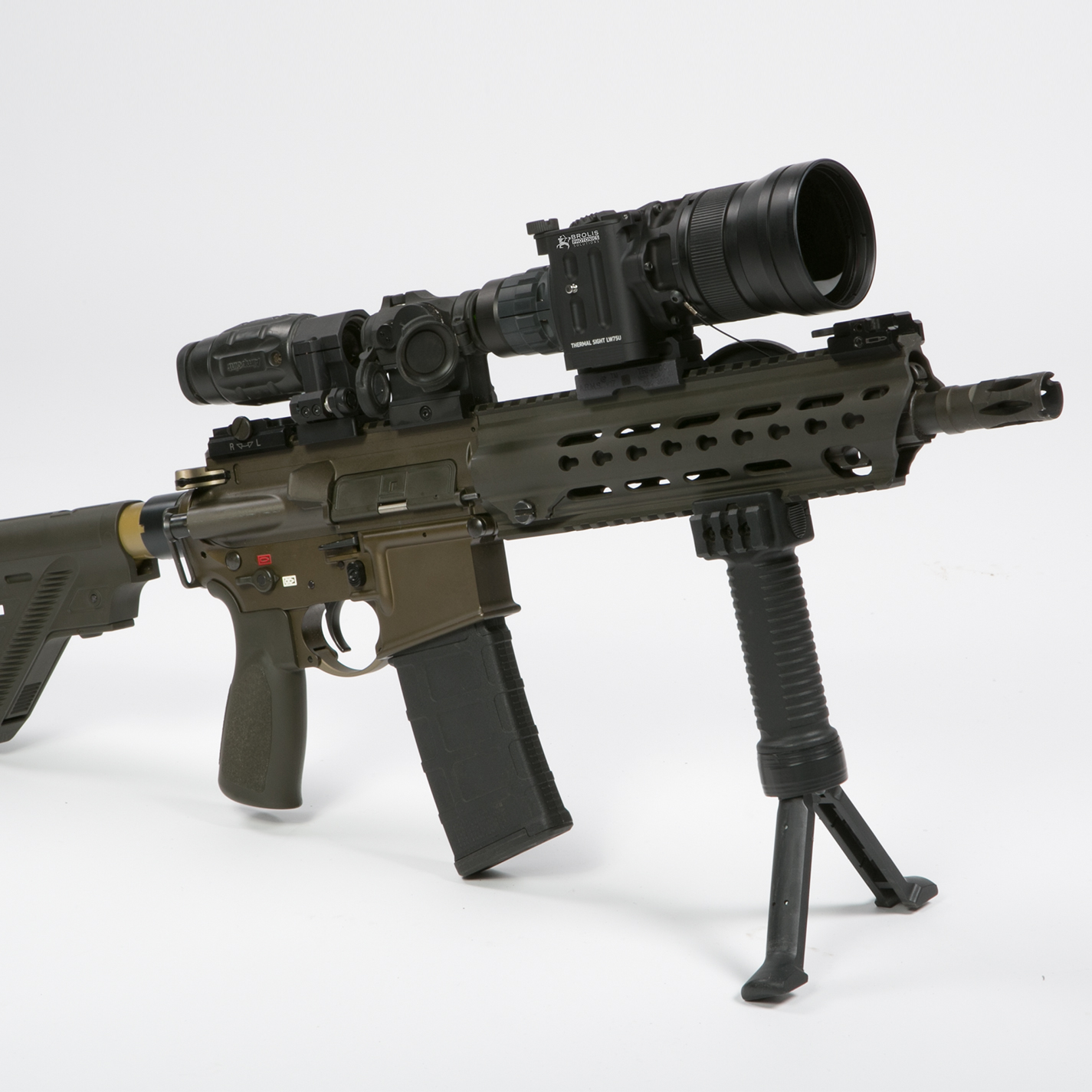

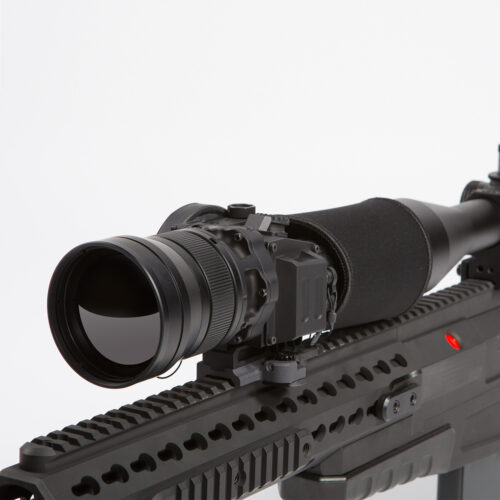

The BROLIS LW75-MG is rugged uncooled thermal sight providing explicit day/night imagery through various obscurants like dust, smoke, haze, fog and others. Thermal sight is designed and dedicated to be used as a stand-alone thermal aiming device for rapid target acquisition and engagement. The sight has few different reticles based on calibers of firearms (5.56×45 mm, 7.62×51 mm, 12.7×99 mm) and special reticle for reconnaissance and observation tasks. The LW75-MG incorporates the latest uncooled VOx microbolometer sensor technology providing unmatched sensitivity of the system. The LW75-MG is equipped with an analog video-out capability. The BROLIS LW75-MG is easy to use, accepts standard AA batteries or external power source, has full metal aluminum alloy 7075 (aerospacegrade) housing and is protected by superior wear and corrosion resistant, chemically stable coating. The LW75-MG comes with a one year warranty.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Accessories

Standard accessories: Ocular flip cap, Operator‘s manual, Hand strap, Mount adjustment screwdriver, Microfiber cloth, Shuttered eyeguard, Lens cleaning tool, Analog video output cable, External power cable, 3 AA batteries, Remote control pad, and Soft pouch.

Specifications

NSN
5855-47-001-0614
OPTICAL PROPERTIES
OPTICAL PROPERTIES
Sensor
640 x 480 17 µm VOx microbolometer
Spectral Range
8-12 µm (LWIR)
FOV
8.30° (H) X 6.23° (V)
Objective Focal length
75mm
Focus
Manual
F-Number
1.2
Sensor sensitivity
<35mK @ F/1.0
Optical magnification
~2,8
FOV (eyepiece)
23.2° (H) x 17.5° (V)
Diopters
-4 / +2
Eye relief
~50 mm
Eye box
~8 mm
Digital zoom
1x, 2x, 4x
Human target detection / recognition
2.5 /0.7 km
NATO target detection / recognition
3.3 /1 km
ELECTRICAL PROPERTIES
ELECTRICAL PROPERTIES
Internal power supply
3 x AA battery
Run time
>4 h
MECHANICAL PROPERTIES
MECHANICAL PROPERTIES
Length, width, height (max)
191 x 76 x 96 mm
Weight (without batteries)
~895 g (without collimator cap)*
Mounting interface
MIL-STD-1913 Rail (Picatinny Rail) / NATO STANAG 4694
Connectors
CVBS Analog Video Out, Remote Control Pad
ENVIRONMENTAL PROPERTIES
ENVIRONMENTAL PROPERTIES
Operational temperature
-40 °C to +50 °C
Storage temperature
-50 °C to +72 °C
IP Rating
Manufactured to IP68
*Product weights may vary due to manufacturing and configuration processes.
*Product weights may vary due to manufacturing and configuration processes.

Specifications subject to change without notice. All night vision products and accessories are controlled under export laws with guidance from International Traffic in Arms (ITAR). By purchasing equipment from Night Vision Devices, you understand that these products cannot leave the country without a valid US Dept of State License.
